11. Overlays

Overlays are software components that provide hooks to functions analogous to those provided by backends, which can be stacked on top of the backend calls and as callbacks on top of backend responses to alter their behavior.

Overlays may be compiled statically into slapd, or when module support is enabled, they may be dynamically loaded. Most of the overlays are only allowed to be configured on individual databases.

Some can be stacked on the frontend as well, for global use. This means that they can be executed after a request is parsed and validated, but right before the appropriate database is selected. The main purpose is to affect operations regardless of the database they will be handled by, and, in some cases, to influence the selection of the database by massaging the request DN.

Essentially, overlays represent a means to:

customize the behavior of existing backends without changing the backend code and without requiring one to write a new custom backend with complete functionality
write functionality of general usefulness that can be applied to different backend types

When using slapd.conf(5), overlays that are configured before any other databases are considered global, as mentioned above. In fact they are implicitly stacked on top of the frontend database. They can also be explicitly configured as such:

        database frontend
        overlay <overlay name>

Overlays are usually documented by separate specific man pages in section 5; the naming convention is

        slapo-<overlay name>

All distributed core overlays have a man page. Feel free to contribute to any, if you think there is anything missing in describing the behavior of the component and the implications of all the related configuration directives.

Official overlays are located in

        servers/slapd/overlays/

That directory also contains the file slapover.txt, which describes the rationale of the overlay implementation, and may serve as a guideline for the development of custom overlays.

Contribware overlays are located in

        contrib/slapd-modules/<overlay name>/

along with other types of run-time loadable components; they are officially distributed, but not maintained by the project.

All the current overlays in OpenLDAP are listed and described in detail in the following sections.

11.1. Access Logging

11.1.1. Overview

This overlay can record accesses to a given backend database on another database.

This allows all of the activity on a given database to be reviewed using arbitrary LDAP queries, instead of just logging to local flat text files. Configuration options are available for selecting a subset of operation types to log, and to automatically prune older log records from the logging database. Log records are stored with audit schema to assure their readability whether viewed as LDIF or in raw form.

It is also used for delta-syncrepl replication

11.1.2. Access Logging Configuration

The following is a basic example that implements Access Logging:

        database bdb
        suffix dc=example,dc=com
        ...
        overlay accesslog
        logdb cn=log
        logops writes reads
        logold (objectclass=person)

        database bdb
        suffix cn=log
        ...
        index reqStart eq
        access to *
          by dn.base="cn=admin,dc=example,dc=com" read

The following is an example used for delta-syncrepl replication:

        database hdb
        suffix cn=accesslog
        directory /usr/local/var/openldap-accesslog
        rootdn cn=accesslog
        index default eq
        index entryCSN,objectClass,reqEnd,reqResult,reqStart

Accesslog overlay definitions for the primary db

        database bdb
        suffix dc=example,dc=com
        ...
        overlay accesslog
        logdb cn=accesslog
        logops writes
        logsuccess TRUE
        # scan the accesslog DB every day, and purge entries older than 7 days
        logpurge 07+00:00 01+00:00

An example search result against cn=accesslog might look like:

        [ghenry@suretec ghenry]# ldapsearch -x -b cn=accesslog
        # extended LDIF
        #
        # LDAPv3
        # base <cn=accesslog> with scope subtree
        # filter: (objectclass=*)
        # requesting: ALL
        #

        # accesslog
        dn: cn=accesslog
        objectClass: auditContainer
        cn: accesslog

        # 20080110163829.000004Z, accesslog
        dn: reqStart=20080110163829.000004Z,cn=accesslog
        objectClass: auditModify
        reqStart: 20080110163829.000004Z
        reqEnd: 20080110163829.000005Z
        reqType: modify
        reqSession: 196696
        reqAuthzID: cn=admin,dc=suretecsystems,dc=com
        reqDN: uid=suretec-46022f8$,ou=Users,dc=suretecsystems,dc=com
        reqResult: 0
        reqMod: sambaPwdCanChange:- ###CENSORED###
        reqMod: sambaPwdCanChange:+ ###CENSORED###
        reqMod: sambaNTPassword:- ###CENSORED###
        reqMod: sambaNTPassword:+ ###CENSORED###
        reqMod: sambaPwdLastSet:- ###CENSORED###
        reqMod: sambaPwdLastSet:+ ###CENSORED###
        reqMod: entryCSN:= 20080110163829.095157Z#000000#000#000000
        reqMod: modifiersName:= cn=admin,dc=suretecsystems,dc=com
        reqMod: modifyTimestamp:= 20080110163829Z

        # search result
        search: 2
        result: 0 Success

        # numResponses: 3
        # numEntries: 2

For more information, please see slapo-accesslog(5) and the delta-syncrepl replication section.

11.2. Audit Logging

The Audit Logging overlay can be used to record all changes on a given backend database to a specified log file.

11.2.1. Overview

If the need arises whereby changes need to be logged as standard LDIF, then the auditlog overlay slapo-auditlog (5) can be used. Full examples are available in the man page slapo-auditlog (5)

11.2.2. Audit Logging Configuration

If the directory is running vi slapd.d, then the following LDIF could be used to add the overlay to the overlay list in cn=config and set what file the LDIF gets logged to (adjust to suit)

       dn: olcOverlay=auditlog,olcDatabase={1}hdb,cn=config
       changetype: add
       objectClass: olcOverlayConfig
       objectClass: olcAuditLogConfig
       olcOverlay: auditlog
       olcAuditlogFile: /tmp/auditlog.ldif

In this example for testing, we are logging changes to /tmp/auditlog.ldif

A typical LDIF file created by slapo-auditlog (5) would look like:

       # add 1196797576 dc=suretecsystems,dc=com cn=admin,dc=suretecsystems,dc=com
       dn: dc=suretecsystems,dc=com
       changetype: add
       objectClass: dcObject
       objectClass: organization
       dc: suretecsystems
       o: Suretec Systems Ltd.
       structuralObjectClass: organization
       entryUUID: 1606f8f8-f06e-1029-8289-f0cc9d81e81a
       creatorsName: cn=admin,dc=suretecsystems,dc=com
       modifiersName: cn=admin,dc=suretecsystems,dc=com
       createTimestamp: 20051123130912Z
       modifyTimestamp: 20051123130912Z
       entryCSN: 20051123130912.000000Z#000001#000#000000
       auditContext: cn=accesslog
       # end add 1196797576

       # add 1196797577 dc=suretecsystems,dc=com cn=admin,dc=suretecsystems,dc=com
       dn: ou=Groups,dc=suretecsystems,dc=com
       changetype: add
       objectClass: top
       objectClass: organizationalUnit
       ou: Groups
       structuralObjectClass: organizationalUnit
       entryUUID: 160aaa2a-f06e-1029-828a-f0cc9d81e81a
       creatorsName: cn=admin,dc=suretecsystems,dc=com
       modifiersName: cn=admin,dc=suretecsystems,dc=com
       createTimestamp: 20051123130912Z
       modifyTimestamp: 20051123130912Z
       entryCSN: 20051123130912.000000Z#000002#000#000000
       # end add 1196797577

11.3. Chaining

11.3.1. Overview

The chain overlay provides basic chaining capability to the underlying database.

What is chaining? It indicates the capability of a DSA to follow referrals on behalf of the client, so that distributed systems are viewed as a single virtual DSA by clients that are otherwise unable to "chase" (i.e. follow) referrals by themselves.

The chain overlay is built on top of the ldap backend; it is compiled by default when --enable-ldap.

11.3.2. Chaining Configuration

In order to demonstrate how this overlay works, we shall discuss a typical scenario which might be one master server and three Syncrepl slaves.

On each replica, add this near the top of the slapd.conf(5) file (global), before any database definitions:

        overlay                    chain
        chain-uri                  "ldap://ldapmaster.example.com"
        chain-idassert-bind        bindmethod="simple"
                                   binddn="cn=Manager,dc=example,dc=com"
                                   credentials="<secret>"
                                   mode="self"
        chain-tls                  start
        chain-return-error         TRUE

Add this below your syncrepl statement:

        updateref                  "ldap://ldapmaster.example.com/"

The chain-tls statement enables TLS from the slave to the ldap master. The DITs are exactly the same between these machines, therefore whatever user bound to the slave will also exist on the master. If that DN does not have update privileges on the master, nothing will happen.

You will need to restart the slave after these slapd.conf changes. Then, if you are using loglevel stats (256), you can monitor an ldapmodify on the slave and the master. (If you're using cn=config no restart is required.)

Now start an ldapmodify on the slave and watch the logs. You should expect something like:

        Sep  6 09:27:25 slave1 slapd[29274]: conn=11 fd=31 ACCEPT from IP=143.199.102.216:45181 (IP=143.199.102.216:389)
        Sep  6 09:27:25 slave1 slapd[29274]: conn=11 op=0 STARTTLS
        Sep  6 09:27:25 slave1 slapd[29274]: conn=11 op=0 RESULT oid= err=0 text=
        Sep  6 09:27:25 slave1 slapd[29274]: conn=11 fd=31 TLS established tls_ssf=256 ssf=256
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=1 BIND dn="uid=user1,ou=people,dc=example,dc=com" method=128
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=1 BIND dn="uid=user1,ou=People,dc=example,dc=com" mech=SIMPLE ssf=0
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=1 RESULT tag=97 err=0 text=
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=2 MOD dn="uid=user1,ou=People,dc=example,dc=com"
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=2 MOD attr=mail
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=2 RESULT tag=103 err=0 text=
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 op=3 UNBIND
        Sep  6 09:27:28 slave1 slapd[29274]: conn=11 fd=31 closed
        Sep  6 09:27:28 slave1 slapd[29274]: syncrepl_entry: LDAP_RES_SEARCH_ENTRY(LDAP_SYNC_MODIFY)
        Sep  6 09:27:28 slave1 slapd[29274]: syncrepl_entry: be_search (0)
        Sep  6 09:27:28 slave1 slapd[29274]: syncrepl_entry: uid=user1,ou=People,dc=example,dc=com
        Sep  6 09:27:28 slave1 slapd[29274]: syncrepl_entry: be_modify (0)

And on the master you will see this:

        Sep  6 09:23:57 ldapmaster slapd[2961]: conn=55902 op=3 PROXYAUTHZ dn="uid=user1,ou=people,dc=example,dc=com"
        Sep  6 09:23:57 ldapmaster slapd[2961]: conn=55902 op=3 MOD dn="uid=user1,ou=People,dc=example,dc=com"
        Sep  6 09:23:57 ldapmaster slapd[2961]: conn=55902 op=3 MOD attr=mail
        Sep  6 09:23:57 ldapmaster slapd[2961]: conn=55902 op=3 RESULT tag=103 err=0 text=

Note: You can clearly see the PROXYAUTHZ line on the master, indicating the proper identity assertion for the update on the master. Also note the slave immediately receiving the Syncrepl update from the master.

11.3.3. Handling Chaining Errors

By default, if chaining fails, the original referral is returned to the client under the assumption that the client might want to try and follow the referral.

With the following directive however, if the chaining fails at the provider side, the actual error is returned to the client.

        chain-return-error TRUE

11.4. Constraints

11.4.1. Overview

This overlay enforces a regular expression constraint on all values of specified attributes during an LDAP modify request that contains add or modify commands. It is used to enforce a more rigorous syntax when the underlying attribute syntax is too general.

11.4.2. Constraint Configuration

Configuration via slapd.conf(5) would look like:

        overlay constraint
        constraint_attribute mail regex ^[:alnum:]+@mydomain.com$
        constraint_attribute title uri
        ldap:///dc=catalog,dc=example,dc=com?title?sub?(objectClass=titleCatalog)

A specification like the above would reject any mail attribute which did not look like <alpha-numeric string>@mydomain.com.

It would also reject any title attribute whose values were not listed in the title attribute of any titleCatalog entries in the given scope.

An example for use with cn=config:

       dn: olcOverlay=constraint,olcDatabase={1}hdb,cn=config
       changetype: add
       objectClass: olcOverlayConfig
       objectClass: olcConstraintConfig
       olcOverlay: constraint
       olcConstraintAttribute: mail regex ^[:alnum:]+@mydomain.com$
       olcConstraintAttribute: title uri ldap:///dc=catalog,dc=example,dc=com?title?sub?(objectClass=titleCatalog)

11.5. Dynamic Directory Services

11.5.1. Overview

The dds overlay to slapd(8) implements dynamic objects as per RFC2589. The name dds stands for Dynamic Directory Services. It allows to define dynamic objects, characterized by the dynamicObject objectClass.

Dynamic objects have a limited lifetime, determined by a time-to-live (TTL) that can be refreshed by means of a specific refresh extended operation. This operation allows to set the Client Refresh Period (CRP), namely the period between refreshes that is required to preserve the dynamic object from expiration. The expiration time is computed by adding the requested TTL to the current time. When dynamic objects reach the end of their lifetime without being further refreshed, they are automatically deleted. There is no guarantee of immediate deletion, so clients should not count on it.

11.5.2. Dynamic Directory Service Configuration

A usage of dynamic objects might be to implement dynamic meetings; in this case, all the participants to the meeting are allowed to refresh the meeting object, but only the creator can delete it (otherwise it will be deleted when the TTL expires).

If we add the overlay to an example database, specifying a Max TTL of 1 day, a min of 10 seconds, with a default TTL of 1 hour. We'll also specify an interval of 120 (less than 60s might be too small) seconds between expiration checks and a tolerance of 5 second (lifetime of a dynamic object will be entryTtl + tolerance).

       overlay dds
       dds-max-ttl     1d
       dds-min-ttl     10s
       dds-default-ttl 1h
       dds-interval    120s
       dds-tolerance   5s

and add an index:

       entryExpireTimestamp

Creating a meeting is as simple as adding the following:

       dn: cn=OpenLDAP Documentation Meeting,ou=Meetings,dc=example,dc=com
       objectClass: groupOfNames
       objectClass: dynamicObject
       cn: OpenLDAP Documentation Meeting
       member: uid=ghenry,ou=People,dc=example,dc=com
       member: uid=hyc,ou=People,dc=example,dc=com

11.5.2.1. Dynamic Directory Service ACLs

Allow users to start a meeting and to join it; restrict refresh to the member; restrict delete to the creator:

       access to attrs=userPassword
          by self write
          by * read

       access to dn.base="ou=Meetings,dc=example,dc=com"
                 attrs=children
            by users write

       access to dn.onelevel="ou=Meetings,dc=example,dc=com"
                 attrs=entry
            by dnattr=creatorsName write
            by * read

       access to dn.onelevel="ou=Meetings,dc=example,dc=com"
                 attrs=participant
            by dnattr=creatorsName write
            by users selfwrite
            by * read

       access to dn.onelevel="ou=Meetings,dc=example,dc=com"
                 attrs=entryTtl
            by dnattr=member manage
            by * read

In simple terms, the user who created the OpenLDAP Documentation Meeting can add new attendees, refresh the meeting using (basically complete control):

       ldapexop -x -H ldap://ldaphost "refresh" "cn=OpenLDAP Documentation Meeting,ou=Meetings,dc=example,dc=com" "120" -D "uid=ghenry,ou=People,dc=example,dc=com" -W

Any user can join the meeting, but not add another attendee, but they can refresh the meeting. The ACLs above are quite straight forward to understand.

11.6. Dynamic Groups

11.6.1. Overview

This overlay extends the Compare operation to detect members of a dynamic group. This overlay is now deprecated as all of its functions are available using the Dynamic Lists overlay.

11.6.2. Dynamic Group Configuration

11.7. Dynamic Lists

11.7.1. Overview

This overlay allows expansion of dynamic groups and lists. Instead of having the group members or list attributes hard coded, this overlay allows us to define an LDAP search whose results will make up the group or list.

11.7.2. Dynamic List Configuration

This module can behave both as a dynamic list and dynamic group, depending on the configuration. The syntax is as follows:

       overlay dynlist
       dynlist-attrset <group-oc> <URL-ad> [member-ad]

The parameters to the dynlist-attrset directive have the following meaning:

<group-oc>: specifies which object class triggers the subsequent LDAP search. Whenever an entry with this object class is retrieved, the search is performed.
<URL-ad>: is the name of the attribute which holds the search URI. It has to be a subtype of labeledURI. The attributes and values present in the search result are added to the entry unless member-ad is used (see below).
member-ad: if present, changes the overlay behavior into a dynamic group. Instead of inserting the results of the search in the entry, the distinguished name of the results are added as values of this attribute.

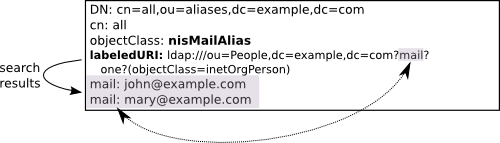

Here is an example which will allow us to have an email alias which automatically expands to all user's emails according to our LDAP filter:

In slapd.conf(5):

       overlay dynlist
       dynlist-attrset nisMailAlias labeledURI

This means that whenever an entry which has the nisMailAlias object class is retrieved, the search specified in the labeledURI attribute is performed.

Let's say we have this entry in our directory:

       cn=all,ou=aliases,dc=example,dc=com
       cn: all
       objectClass: nisMailAlias
       labeledURI: ldap:///ou=People,dc=example,dc=com?mail?one?(objectClass=inetOrgPerson)

If this entry is retrieved, the search specified in labeledURI will be performed and the results will be added to the entry just as if they have always been there. In this case, the search filter selects all entries directly under ou=People that have the inetOrgPerson object class and retrieves the mail attribute, if it exists.

This is what gets added to the entry when we have two users under ou=People that match the filter:

Figure X.Y: Dynamic List for all emails

The configuration for a dynamic group is similar. Let's see an example which would automatically populate an allusers group with all the user accounts in the directory.

In slapd.conf(5):

       overlay dynlist
       dynlist-attrset groupOfNames labeledURI member

Let's apply it to the following entry:

       cn=allusers,ou=group,dc=example,dc=com
       cn: all
       objectClass: groupOfNames
       labeledURI: ldap:///ou=people,dc=example,dc=com??one?(objectClass=inetOrgPerson)

The behavior is similar to the dynamic list configuration we had before: whenever an entry with the groupOfNames object class is retrieved, the search specified in the labeledURI attribute is performed. But this time, only the distinguished names of the results are added, and as values of the member attribute.

This is what we get:

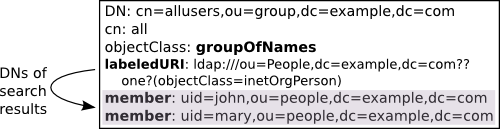

Figure X.Y: Dynamic Group for all users

Note that a side effect of this scheme of dynamic groups is that the members need to be specified as full DNs. So, if you are planning in using this for posixGroups, be sure to use RFC2307bis and some attribute which can hold distinguished names. The memberUid attribute used in the posixGroup object class can hold only names, not DNs, and is therefore not suitable for dynamic groups.

11.8. Reverse Group Membership Maintenance

11.8.1. Overview

In some scenarios, it may be desirable for a client to be able to determine which groups an entry is a member of, without performing an additional search. Examples of this are applications using the DIT for access control based on group authorization.

The memberof overlay updates an attribute (by default memberOf) whenever changes occur to the membership attribute (by default member) of entries of the objectclass (by default groupOfNames) configured to trigger updates.

Thus, it provides maintenance of the list of groups an entry is a member of, when usual maintenance of groups is done by modifying the members on the group entry.

11.8.2. Member Of Configuration

The typical use of this overlay requires just enabling the overlay for a specific database. For example, with the following minimal slapd.conf:

        include /usr/share/openldap/schema/core.schema
        include /usr/share/openldap/schema/cosine.schema
        modulepath      /usr/lib/openldap
        moduleload      memberof.la
        authz-regexp "gidNumber=0\\\+uidNumber=0,cn=peercred,cn=external,cn=auth"
                "cn=Manager,dc=example,dc=com"
        database        bdb
        suffix          "dc=example,dc=com"
        rootdn          "cn=Manager,dc=example,dc=com"
        rootpw          secret
        directory       /var/lib/ldap2.4
        checkpoint 256 5
        index   objectClass   eq
        index   uid           eq,sub

        overlay memberof

adding the following ldif:

        cat memberof.ldif
        dn: dc=example,dc=com
        objectclass: domain
        dc: example

        dn: ou=Group,dc=example,dc=com
        objectclass: organizationalUnit
        ou: Group

        dn: ou=People,dc=example,dc=com
        objectclass: organizationalUnit
        ou: People

        dn: uid=test1,ou=People,dc=example,dc=com
        objectclass: account
        uid: test1

        dn: cn=testgroup,ou=Group,dc=example,dc=com
        objectclass: groupOfNames
        cn: testgroup
        member: uid=test1,ou=People,dc=example,dc=com

Results in the following output from a search on the test1 user:

 # ldapsearch -LL -Y EXTERNAL -H ldapi:/// "(uid=test1)" -b dc=example,dc=com memberOf
 SASL/EXTERNAL authentication started
 SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
 SASL SSF: 0
 version: 1

 dn: uid=test1,ou=People,dc=example,dc=com
 memberOf: cn=testgroup,ou=Group,dc=example,dc=com

Note that the memberOf attribute is an operational attribute, so it must be requested explicitly.

11.9. The Proxy Cache Engine

LDAP servers typically hold one or more subtrees of a DIT. Replica (or shadow) servers hold shadow copies of entries held by one or more master servers. Changes are propagated from the master server to replica (slave) servers using LDAP Sync replication. An LDAP cache is a special type of replica which holds entries corresponding to search filters instead of subtrees.

11.9.1. Overview

The proxy cache extension of slapd is designed to improve the responsiveness of the ldap and meta backends. It handles a search request (query) by first determining whether it is contained in any cached search filter. Contained requests are answered from the proxy cache's local database. Other requests are passed on to the underlying ldap or meta backend and processed as usual.

E.g. (shoesize>=9) is contained in (shoesize>=8) and (sn=Richardson) is contained in (sn=Richards*)

Correct matching rules and syntaxes are used while comparing assertions for query containment. To simplify the query containment problem, a list of cacheable "templates" (defined below) is specified at configuration time. A query is cached or answered only if it belongs to one of these templates. The entries corresponding to cached queries are stored in the proxy cache local database while its associated meta information (filter, scope, base, attributes) is stored in main memory.

A template is a prototype for generating LDAP search requests. Templates are described by a prototype search filter and a list of attributes which are required in queries generated from the template. The representation for prototype filter is similar to RFC4515, except that the assertion values are missing. Examples of prototype filters are: (sn=),(&(sn=)(givenname=)) which are instantiated by search filters (sn=Doe) and (&(sn=Doe)(givenname=John)) respectively.

The cache replacement policy removes the least recently used (LRU) query and entries belonging to only that query. Queries are allowed a maximum time to live (TTL) in the cache thus providing weak consistency. A background task periodically checks the cache for expired queries and removes them.

The Proxy Cache paper (http://www.openldap.org/pub/kapurva/proxycaching.pdf) provides design and implementation details.

11.9.2. Proxy Cache Configuration

The cache configuration specific directives described below must appear after a overlay proxycache directive within a "database meta" or database ldap section of the server's slapd.conf(5) file.

11.9.2.1. Setting cache parameters

 proxyCache <DB> <maxentries> <nattrsets> <entrylimit> <period>

This directive enables proxy caching and sets general cache parameters. The <DB> parameter specifies which underlying database is to be used to hold cached entries. It should be set to bdb or hdb. The <maxentries> parameter specifies the total number of entries which may be held in the cache. The <nattrsets> parameter specifies the total number of attribute sets (as specified by the proxyAttrSet directive) that may be defined. The <entrylimit> parameter specifies the maximum number of entries in a cacheable query. The <period> specifies the consistency check period (in seconds). In each period, queries with expired TTLs are removed.

11.9.2.2. Defining attribute sets

 proxyAttrset <index> <attrs...>

Used to associate a set of attributes to an index. Each attribute set is associated with an index number from 0 to <numattrsets>-1. These indices are used by the proxyTemplate directive to define cacheable templates.

11.9.2.3. Specifying cacheable templates

 proxyTemplate <prototype_string> <attrset_index> <TTL>

Specifies a cacheable template and the "time to live" (in sec) <TTL> for queries belonging to the template. A template is described by its prototype filter string and set of required attributes identified by <attrset_index>.

11.9.2.4. Example

An example slapd.conf(5) database section for a caching server which proxies for the "dc=example,dc=com" subtree held at server ldap.example.com.

        database        ldap
        suffix          "dc=example,dc=com"
        rootdn          "dc=example,dc=com"
        uri             ldap://ldap.example.com/
        overlay proxycache
        proxycache    bdb 100000 1 1000 100
        proxyAttrset  0 mail postaladdress telephonenumber
        proxyTemplate (sn=) 0 3600
        proxyTemplate (&(sn=)(givenName=)) 0 3600
        proxyTemplate (&(departmentNumber=)(secretary=*)) 0 3600

        cachesize 20
        directory ./testrun/db.2.a
        index       objectClass eq
        index       cn,sn,uid,mail  pres,eq,sub

11.9.2.4.1. Cacheable Queries

A LDAP search query is cacheable when its filter matches one of the templates as defined in the "proxyTemplate" statements and when it references only the attributes specified in the corresponding attribute set. In the example above the attribute set number 0 defines that only the attributes: mail postaladdress telephonenumber are cached for the following proxyTemplates.

11.9.2.4.2. Examples:

        Filter: (&(sn=Richard*)(givenName=jack))
        Attrs: mail telephoneNumber

is cacheable, because it matches the template (&(sn=)(givenName=)) and its attributes are contained in proxyAttrset 0.

        Filter: (&(sn=Richard*)(telephoneNumber))
        Attrs: givenName

is not cacheable, because the filter does not match the template, nor is the attribute givenName stored in the cache

        Filter: (|(sn=Richard*)(givenName=jack))
        Attrs: mail telephoneNumber

is not cacheable, because the filter does not match the template ( logical OR "|" condition instead of logical AND "&" )

11.10. Password Policies

11.10.1. Overview

This overlay follows the specifications contained in the draft RFC titled draft-behera-ldap-password-policy-09. While the draft itself is expired, it has been implemented in several directory servers, including slapd. Nonetheless, it is important to note that it is a draft, meaning that it is subject to change and is a work-in-progress.

The key abilities of the password policy overlay are as follows:

Enforce a minimum length for new passwords
Make sure passwords are not changed too frequently
Cause passwords to expire, provide warnings before they need to be changed, and allow a fixed number of 'grace' logins to allow them to be changed after they have expired
Maintain a history of passwords to prevent password re-use
Prevent password guessing by locking a password for a specified period of time after repeated authentication failures
Force a password to be changed at the next authentication
Set an administrative lock on an account
Support multiple password policies on a default or a per-object basis.
Perform arbitrary quality checks using an external loadable module. This is a non-standard extension of the draft RFC.

11.10.2. Password Policy Configuration

Instantiate the module in the database where it will be used, after adding the new ppolicy schema and loading the ppolicy module. The following example shows the ppolicy module being added to the database that handles the naming context "dc=example,dc=com". In this example we are also specifying the DN of a policy object to use if none other is specified in a user's object.

       database bdb
       suffix "dc=example,dc=com"
       [...additional database configuration directives go here...]

       overlay ppolicy
       ppolicy_default "cn=default,ou=policies,dc=example,dc=com"

Now we need a container for the policy objects. In our example the password policy objects are going to be placed in a section of the tree called "ou=policies,dc=example,dc=com":

       dn: ou=policies,dc=example,dc=com
       objectClass: organizationalUnit
       objectClass: top
       ou: policies

The default policy object that we are creating defines the following policies:

The user is allowed to change his own password. Note that the directory ACLs for this attribute can also affect this ability (pwdAllowUserChange: TRUE).
The name of the password attribute is "userPassword" (pwdAttribute: userPassword). Note that this is the only value that is accepted by OpenLDAP for this attribute.
The server will check the syntax of the password. If the server is unable to check the syntax (i.e., it was hashed or otherwise encoded by the client) it will return an error refusing the password (pwdCheckQuality: 2).
When a client includes the Password Policy Request control with a bind request, the server will respond with a password expiration warning if it is going to expire in ten minutes or less (pwdExpireWarning: 600). The warnings themselves are returned in a Password Policy Response control.
When the password for a DN has expired, the server will allow five additional "grace" logins (pwdGraceAuthNLimit: 5).
The server will maintain a history of the last five passwords that were used for a DN (pwdInHistory: 5).
The server will lock the account after the maximum number of failed bind attempts has been exceeded (pwdLockout: TRUE).
When the server has locked an account, the server will keep it locked until an administrator unlocks it (pwdLockoutDuration: 0)
The server will reset its failed bind count after a period of 30 seconds.
Passwords will not expire (pwdMaxAge: 0).
Passwords can be changed as often as desired (pwdMinAge: 0).
Passwords must be at least 5 characters in length (pwdMinLength: 5).
The password does not need to be changed at the first bind or when the administrator has reset the password (pwdMustChange: FALSE)
The current password does not need to be included with password change requests (pwdSafeModify: FALSE)
The server will only allow five failed binds in a row for a particular DN (pwdMaxFailure: 5).

The actual policy would be:

       dn: cn=default,ou=policies,dc=example,dc=com
       cn: default
       objectClass: pwdPolicy
       objectClass: person
       objectClass: top
       pwdAllowUserChange: TRUE
       pwdAttribute: userPassword
       pwdCheckQuality: 2
       pwdExpireWarning: 600
       pwdFailureCountInterval: 30
       pwdGraceAuthNLimit: 5
       pwdInHistory: 5
       pwdLockout: TRUE
       pwdLockoutDuration: 0
       pwdMaxAge: 0
       pwdMaxFailure: 5
       pwdMinAge: 0
       pwdMinLength: 5
       pwdMustChange: FALSE
       pwdSafeModify: FALSE
       sn: dummy value

You can create additional policy objects as needed.

There are two ways password policy can be applied to individual objects:

1. The pwdPolicySubentry in a user's object - If a user's object has a pwdPolicySubEntry attribute specifying the DN of a policy object, then the policy defined by that object is applied.

2. Default password policy - If there is no specific pwdPolicySubentry set for an object, and the password policy module was configured with the DN of a default policy object and if that object exists, then the policy defined in that object is applied.

Please see slapo-ppolicy(5) for complete explanations of features and discussion of "Password Management Issues" at http://www.connexitor.com/forums/viewtopic.php?f=6&t=25

11.11. Referential Integrity

11.11.1. Overview

This overlay can be used with a backend database such as slapd-bdb(5) to maintain the cohesiveness of a schema which utilizes reference attributes.

Whenever a modrdn or delete is performed, that is, when an entry's DN is renamed or an entry is removed, the server will search the directory for references to this DN (in selected attributes: see below) and update them accordingly. If it was a delete operation, the reference is deleted. If it was a modrdn operation, then the reference is updated with the new DN.

For example, a very common administration task is to maintain group membership lists, specially when users are removed from the directory. When an user account is deleted or renamed, all groups this user is a member of have to be updated. LDAP administrators usually have scripts for that. But we can use the refint overlay to automate this task. In this example, if the user is removed from the directory, the overlay will take care to remove the user from all the groups he/she was a member of. No more scripting for this.

11.11.2. Referential Integrity Configuration

The configuration for this overlay is as follows:

       overlay refint
       refint_attributes <attribute [attribute ...]>
       refint_nothing <string>

refint_attributes: this parameter specifies a space separated list of attributes which will have the referential integrity maintained. When an entry is removed or has its DN renamed, the server will do an internal search for any of the refint_attributes that point to the affected DN and update them accordingly. IMPORTANT: the attributes listed here must have the distinguishedName syntax, that is, hold DNs as values.
refint_nothing: some times, while trying to maintain the referential integrity, the server has to remove the last attribute of its kind from an entry. This may be prohibited by the schema: for example, the groupOfNames object class requires at least one member. In these cases, the server will add the attribute value specified in refint_nothing to the entry.

To illustrate this overlay, we will use the group membership scenario.

In slapd.conf:

       overlay refint
       refint_attributes member
       refint_nothing "cn=admin,dc=example,dc=com"

This configuration tells the overlay to maintain the referential integrity of the member attribute. This attribute is used in the groupOfNames object class which always needs a member, so we add the refint_nothing directive to fill in the group with a standard member should all the members vanish.

If we have the following group membership, the refint overlay will automatically remove john from the group if his entry is removed from the directory:

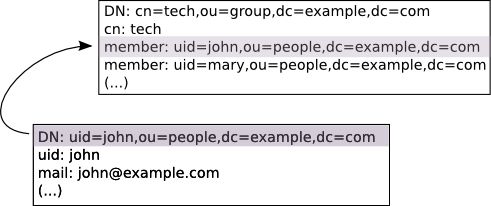

Figure X.Y: Maintaining referential integrity in groups

Notice that if we rename (modrdn) the john entry to, say, jsmith, the refint overlay will also rename the reference in the member attribute, so the group membership stays correct.

If we removed all users from the directory who are a member of this group, then the end result would be a single member in the group: cn=admin,dc=example,dc=com. This is the refint_nothing parameter kicking into action so that the schema is not violated.

11.12. Return Code

11.12.1. Overview

This overlay is useful to test the behavior of clients when server-generated erroneous and/or unusual responses occur.

11.12.2. Return Code Configuration

11.13. Rewrite/Remap

11.13.1. Overview

It performs basic DN/data rewrite and objectClass/attributeType mapping.

11.13.2. Rewrite/Remap Configuration

11.14. Sync Provider

11.14.1. Overview

This overlay implements the provider-side support for syncrepl replication, including persistent search functionality

11.14.2. Sync Provider Configuration

11.15. Translucent Proxy

11.15.1. Overview

This overlay can be used with a backend database such as slapd-bdb (5) to create a "translucent proxy".

Content of entries retrieved from a remote LDAP server can be partially overridden by the database.

11.15.2. Translucent Proxy Configuration

11.16. Attribute Uniqueness

11.16.1. Overview

This overlay can be used with a backend database such as slapd-bdb (5) to enforce the uniqueness of some or all attributes within a subtree.

11.16.2. Attribute Uniqueness Configuration

11.17. Value Sorting

11.17.1. Overview

This overlay can be used to enforce a specific order for the values of an attribute when it is returned in a search.

11.17.2. Value Sorting Configuration

11.18. Overlay Stacking

11.18.1. Overview

Overlays can be stacked, which means that more than one overlay can be instantiated for each database, or for the frontend. As a consequence, each overlays function is called, if defined, when overlay execution is invoked. Multiple overlays are executed in reverse order (as a stack) with respect to their definition in slapd.conf (5), or with respect to their ordering in the config database, as documented in slapd-config (5).
